Tolerances for rod ends
Column：Rod ends
Time：2019-10-11
AAA> Inner ring
1> The tolerance of △dmp and △Bs of GIR…DO,GAR..DO,GIR…UK, GAR…UK, GIR..UK-2RS,GAR…UK-2RS and GIHR…DO,GIHR-K…DO, GIHO-K…DO, GK…DO, GF…DO, GIR..UK-2RS,GAR…UK-2RS are the same as radial spherical plain bearings GE...E,GE...ES,GE…UK,GE…UK-2RS。
2> The △dmp and △Bs of GIHN-K…LO, GF…LO are the same as radial spherical plain bearings GE…LO.
3> The △dmp and △Bs of SIBP...S,SABP...S,SIZP...S,SAZP...S,SAZJ...-and SAZJ... are the same as radial spherical plain bearings GEBK...S。

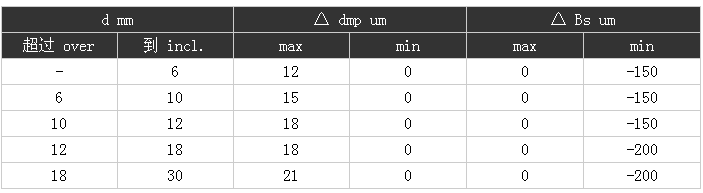

4> Series SIJK...C, SAJK...C,SIK...C,SAK...C

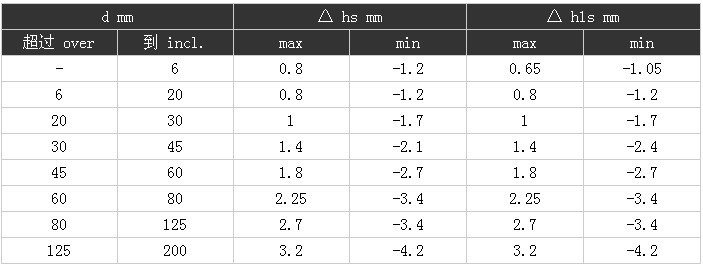

BBB> Center height deviation
